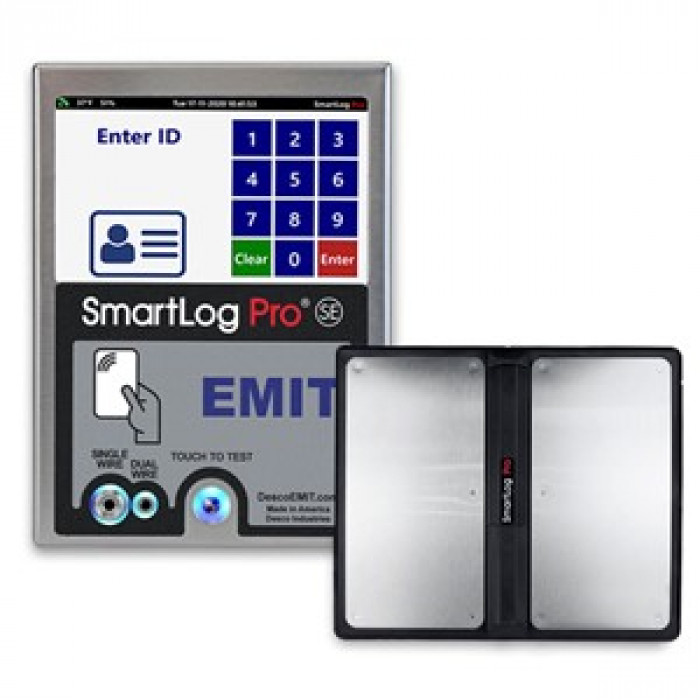

Desco #50170 - SMARTLOG PRO SE, WITH WEB CLIENT SOFTWARE

Contact EMIT Customer Service to schedule an online demo

• NEW User Interface with SmartLog Pro® Manager Web App Compatibility
  Access test data and reports from any web browser
• NEW Multiple Language Settings
  Displays the user interface in English, Spanish, Japanese, Chinese (Simplified), or Turkish
• Tests the Operator’s Path-to-Ground
  Determines if the operator’s personal grounding devices are functioning correctly
• Electronic Data Acquisition
  Creates test record database for auditing and quality control
• Assigned Test Requirement
  Controls access to ESD Protected Area based on operator’s test requirements.
• 5 Inch Color Touchscreen Display
  Intuitive user interface for easy test operation
• Records Resistance Measurements, Temperature and Relative Humidity
  Tracks the performance of ESD wrist straps and footwear
• Software Programmable Test Limits
  Use to meet the testing requirements of ANSI/ESD S20.20 or other standards
• Embedded HID OMNIKEY® Proximity Reader
  Compatible with the following badge formats:

  • HID Prox®
  • Indala Prox
  • MIFARE® Classic
  • MIFARE DESFire® EV1
  • iCLASS®
• Normally Open and Normally Closed Relay Terminals
  Pairs with a turnstile, automatic door or other locking system to control access to ESD Protected Areas (EPA's)
• Simultaneous Testing in Less Than 2 Seconds
  Reduces time spent testing personal grounding devices used in ESD Control Plans
• Stand-Alone Operation
  Operators can continue performing tests even in the event of a network failure
• Embedded CCD Barcode Scanner
  Reads code 39 and 128 by default; contact customer service for custom programming of other symbologies
• Split Foot Plate for Testing Foot Grounders (or Shoes)
  Tests both foot grounders independently at the same time
• NIST Calibrated with Certificate Included
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of EMIT products, see the Calibration web page.
• SmartLog Pro® SE Overview
• Made in the United States of America
  This item is made and stocked in Chino, CA

  U.S. Patent 6,809,522
