Specifications
| Parameter | Description / Value | Remarks | |||
|---|---|---|---|---|---|
| SOB-2S | SOB-3S | SOB-4S | SOB-5S | ||
| Input Power | AC 100 ~ 240V, 50/60Hz | – | |||
| Power Consumption | 37W | 47W | 60W | 75W | Fan Speed Max. |
| Current Consumption | 168mA | 213mA | 272mA | 341mA | AC 220V |
| Ion-Generation Method | Steady-State DC | – | |||
| Air Flow | 8.5m³/min | 12.75m³/min | 17m³/min | 21.25m³/min | Fan Speed Max. |
| Noise Level | 63dB | 64dB | 65dB | 67dB | 1,000mm, Fan Speed Max. |
| Ion Balance | within ± 5V (600mm, Maximum Air flow) | – | |||
| Operation Circumstance | 0˚C~+50˚C (32˚F~122˚F), 35%~85%RH | – | |||
| Ozone(O3) Concentration | ≤0.05ppm | – | |||
| Main Body Material | Aluminum | – | |||
| Electrode Material | Tungsten | – | |||
| Weight | 3.1kg | 4.1kg | 5.2kg | 6.kg | – |
| Function | 4 Step Fan Speed, Tip Cleaning, Auto Tip Cleaning | – | |||
| Alarm Function | Ion Unbalance Alarm, Fan Alarm | – | |||
| Interface | Remote On/Off, Run State, Alarm, Tip Cleaning, RS 485 | – | |||
| Warranty | 1 year | – | |||
Decay Time Characteristics
- Decay Time : ±1,000V to ±100V
- Temperature & Humidity : 24℃, 50%RH
- Charge Plate Capacitance : 20pF (150 X 150mm)
| Category | Descriptions |

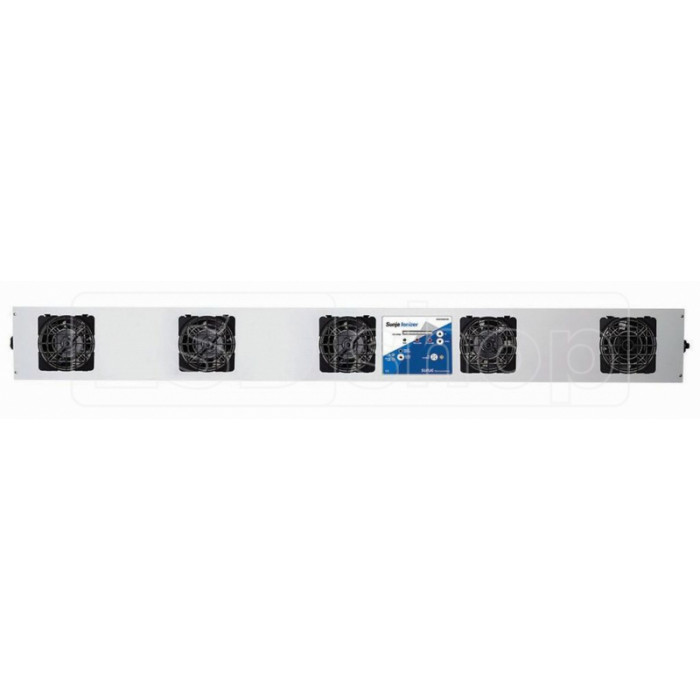

| Model | SOB-5 |
| Input Power | AC100~240V, 50/60Hz |
| Power Consumption | 105W |
| Ion-Generation Method | Steady-State DC |
| Air Blow Volume | 24.2m³/min |
| Noise Level(dB) | 72dB |
| Ion Balance | Within ±20V |
| Ozone(O₃) Concentration | ≤0.005ppm |
| Operation Circumstance | 0℃~+50℃(32˚F ~ 122˚F), 35%~85% RH |
| Weight | 8.2Kg |
| Material | Body-Aluminum, Side Cover-ABS |
| Electrode Material | Tungsten / Titanium |
| Mounting Method | Ceiling, Desk-Top, Self-Standing |
| Function | Remote Control, 4 Steps Fan Speed, Tip Cleaning, Buzzer On/Off |
| Alarm Function | Ion Unbalance Alarm, Alarm Buzzer |
| Interface | Run State, Alarm(Ion Unbalance), Remote On/Off, Interlock , Tip Cleaning |
| Option | |
| Warranty | 1 year |
