ESDMAN > Ionizers > P/N: H1213SAC

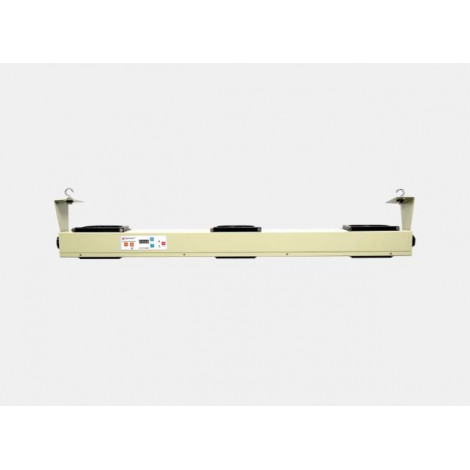

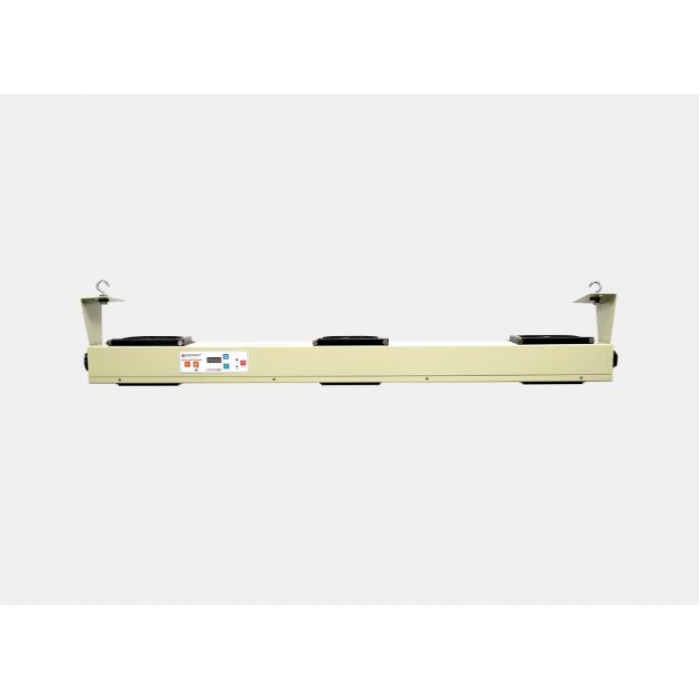

3-Fan Overhead High Frequency AC Ionizer
It is able to automatically clean the emitter point on time; 0-999 hours is adjustable. The cleaning brush automatically cleans the emitter point, which can reduce the time of manual cleaning. Alternatively, it can be manually cleaned within a few seconds.
* Main Features
- Unit Locking: After locking, all keys will be invalid and
- Adjustable air volume
- Monitoring alarm; High voltage and fan operation indicator light and buzzer alarm.
- Quick maintenance: The emitter needle can be quickly dismantled for easy cleaning, maintenance and replacement.
- Front air window easy to dismount and clean.
- Outage protection: After the front air window is taken down, the unit will be powered off.
- Signal output: Alarm signal can be output and under monitoring.
- No electromagnetic interference (No EMI issue).
* Technical Data Sheet
|
Part Number |
H1213SAC |
Automatic Cleaning Time Setting |
0-999 hours |
|
Power Input |
DC24V+5% |
Ozone Generation Amount (ppm) |
Within 0.04ppm (measuring
distance 150mm) |
|
Ion Generation Mode |
Corona
Discharging |
Environment Temperature |
0-40oC |
|
LED Display |
Power supply,
H.V status, Cleaning Indicator |
Environment Humidity |
20%-70%RH (no
condensation) |
|
LED Display |
Fan status, Air
volume indicator |
Dimension |
1020Hx150Wx90Dmm
(bracket included) |
|
Air Volume Output |
2.2-4.1m3/min |
Weight |
5.6KG |
|
Decay Time |
1.0 sec @ 12” |
Warranty |
1 Year |
|
Ion Balance |
+10V @ 12” |
Certification |
CE, FCC |
