Key Features
- Fan speed adjustment is possible
- Alarm function can be used to check when Ion Balance / Fan operation is abnormal.
- Ion Balance ± Within 30V (300mm)
- Real-time automatic Ion Balance maintained
- Ion Balance can be adjusted manually
- Fan filter attachable and removable for easy replacement
- Automatic discharge needle cleaning function for convenient maintenance
- Compatible with automation facilities (PLC, RS-485)
| Category | Descriptions |

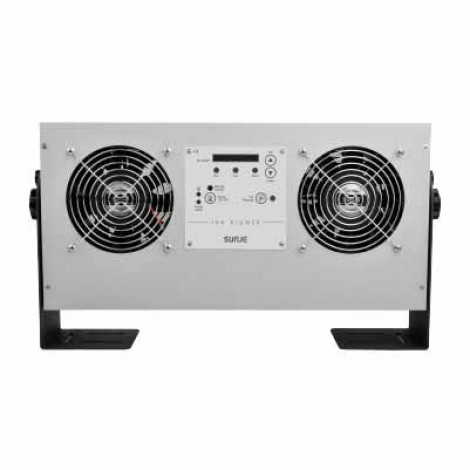

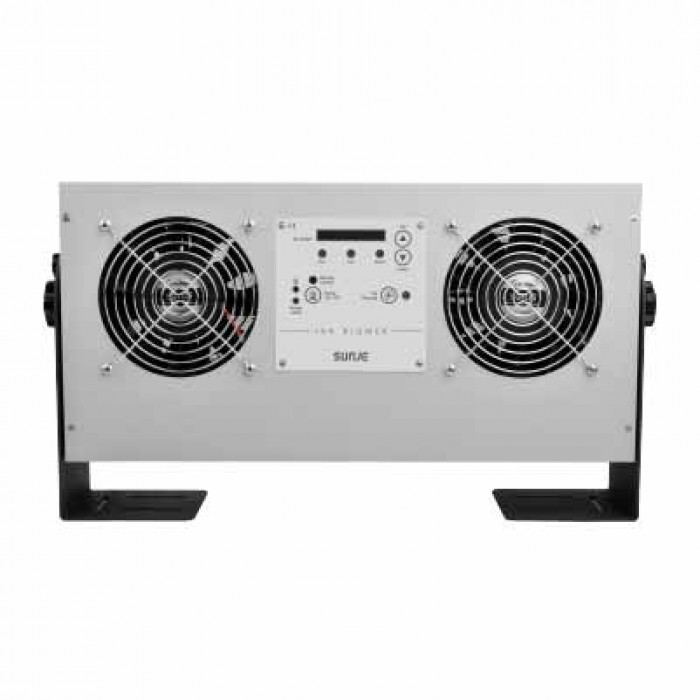

| Model | SBL-30W |
| Input Power | AC100~240V, 50/60Hz |
| Power Consumption | 64W |
| Ion-Generation Method | Steady-State DC |
| Air Blow Volume | 12.44m³/min |
| Noise Level(dB) | 68dB |
| Ion Balance | Within ±2V |
| Ozone(O₃) Concentration | ≤0.005 ppm |
| Operation Circumstance | 0℃~+50℃(32˚F ~ 122˚F), 35%~85% RH |
| Weight | 6.9kg |
| Material | Aluminum |
| Electrode Material | Tungsten / Titanium |
| Mounting Method | Desk Top |
| Function | Remote Control, 4 Step Fan Speed, Tip Cleaning, Buzzer On/Off, Ion Graph Display |
| Alarm Function | Ion Unbalance Alarm, Alarm Buzzer |
| Interface | Run State, Remote On/Off, RS485, Alarm(Ion Unbalance), Tip Cleaning |
| Warranty | 1 year |
